UNIT 2 Introducing to Database and Database Management System



UNIT 2

Introducing to Database and Database Management System

Concept of Data

In today’s world, it is said that information is power. Due to the rapid change of information technology, we have realized that the value of information, as a source. The importance of the speed and ease of which this resource can be managed is equally important to us. The term database literally means it is the basis of data.

Data can be defined as a set of isolated and unrelated raw facts, represented by values which have little meaning. Data are raw facts. The word 'raw' is used to indicate that the facts have not yet been processed to reveal their meaning. Data are information to the computer that is to be processed to get a relevant result. Processed results are called information.

Data has some key points to understand. These key points of data are:

1.     Data constitute the building blocks of information.

2.     Information is produced by processing data.

3.     Information is used to reveal the meaning of data.

4.     Good relevant and timely information are the key to good decision making.

5.     Good decision making is the key to organizational survival in a global environment.

It is clear that timely and useful information requires good data. Such data must be generated properly and stored properly in a format that is easy to access and process. Data management is a discipline that focuses on the proper generation, storage and retrieval of data.

Data management is the core activity for any business, government organization, service organization or charity. Efficient data management requires the use of computer database. Information can be defined as a set of organized and validated collection of data. Knowledge is the act of understanding the context in which the information is used. It can be based on learning through information, experience, guessing intuition, etc. Based on the knowledge, information can be used in a particular text.

Thus, the term data processing means the process of collecting all items of data together to produce meaningful information. It can be done either manually or by the use of computers. If data processing is done with the help of computers, it is known as EDP (Electronic Data Processing).

Hence, the information that we obtain after processing the data must possess the following characteristics.

1.     It must be accurate.

2.     It must be available in time as required.

3.     It must be complete so that more inference can be drawn.

4.     It should be precise in meaning.

5.     It should be relevant to the context.

Database

A database is an organized collection of data in an easily accessible form which is shared and used for multiple purposes. In our day to day life, we come across several databases.

·         In our home, we take care of our personal business with some database of a check book, phone book, address book, etc.

·         In our offices, we keep information about our clients, their phone numbers, etc.

·         We keep detailed information of our employees, their salary, their job description, etc.

·         In school, we keep the records of students, their name, address, parents’ name, etc.

·         Government agencies keep the records of the census.

A database contains records and fields. A record is a collection of different types of information about the same subject. In the case of the telephone book, the category address is a field.

In broader sense, a database is shared, integrated computer structure that houses a collection of:

1.     End user data i.e. raw facts of interest to the end user.

2.     Metadata or data about data through which the data are integrated.

Database Name: EMPLOYEE

EMP_ID	EMP-NAME	ADDRESS	TELEPHONE	SALARY
A4002	YUNIF	PATAN	977552345	12000

Functions of Database

In a general file processing system, records are stored permanently in various files. There are numerous application programs which can extract records and add the records to the appropriate files. These processes have many advantages and disadvantages. They cannot provide data redundancy (duplication of data) and other facilities.

The functions of database are:

1.     To store, manipulate and manage the information.

2.     To reduce the repeated storage of the data (data redundancy) and improve the disk optimization.

3.     To keep latest and correct information (Data Consistency).

4.     To automate the data managing and processing system.

5.     To provide data validation facilities.

6.     To improve data security system.

Fundamentals of Database

Let ustake the example of the following table of some students. This reflects the database concept that based on data processing systems.

Roll No.	Name	English	Nepali	Science	Math	S. Std.	Total
1.	Susmita	78	56	78	90	90	392
2.	Kamal	67	78	90	91	89	415
3.	Amrit	56	45	55	78	80	314
4.	Aakash	67	78	85	90	90	410
5.	Shasank	78	56	80	90	70	374

The above table contains cells. Each cell comprises of the outer border. The border thus formed has made a grid of cells. The combination of these cells is called Table.

Table: The database in Relational Database Management System (RDBMS) like MS-Access is in table form. There are many tables that you can create in a database. Each table has at least a primary key. The relation between these tables can be established with the following concept.

1.     One to one: Relation between two primary keys of the two tables.

2.     One to many: Relation between primary key and non-primary key of the two related tables.

3.     Many to many: A link table between two tables can create many to many relations with the help of primary key and non-primary keys.

Field: A field is a piece of information about an element. A field is represented by a column. Every field has got a title called the field title.

Record: A record is an information about an element such as a person, student, an employee, client, etc. A record can have much information in different heading or titles.

Basic Terms of Database

Some important database-related terms are as follows:

·         Data Type: A data type determines the type of data that can be stored in a column (field). The most common data types used in databases are Alphanumeric, Boolean and Data and time.

·         Key: A key or key field is a column value in the table that is used to either uniquely identify a row of data in a table or establish a relationship with another table. The keys can be of three types. They are Primary key, Foreign key and Candidate key.

·         Data Dictionary: The data dictionary defines the basic organization of a database. It contains the list of all files in the database, the number of records in each file and the names and types of each field.

Database Management System (DBMS)

Database Management System is a software that manages the data stored in a database. This is a collection of software which is used to store data, records, process them and obtain desired information. Since, data are very important to the end users, we must have a good way of managing data.

The DBMS contains a query language that makes it possible to produce a quick answer to ad-hoc queries. A query is a question and an ad-hoc query is a spur of the moment question.

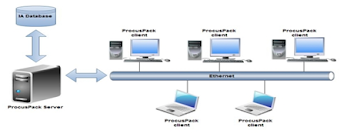

fig. DBMS

The DBMS helps create an environment in which end users have better access to more and better-managed data than they did before the DBMS become the data management standard. Such access makes it possible for end users to respond quickly to the changes in their environment.

A DBMS is a collection of programs that manages the database structure and controls access to the data stored in the database. The DBMS make it possible to share the data in the database among multiple applications or users. The DBMS stands between the database and the user.

Features of Traditional Database System:

The most common database management systems used in early time were DB2, DBASEIII, DBASEIII+, FOXPRO, etc. The applications were developed independently for different departments and organizations and files of information relevant to one particular department were created and processed by dozens or even hundreds of separate programs.

The features of traditional database management system are:

1.     Data redundancy: The data of a single record was present in a different place in different form and it was repeated in many ways.

2.     Data inconsistency: When data in a file is changed it did not support other database or files.

3.     Program –Data Dependence: The data were merely dependent on the program. Any change in the structure of database led to damage of data.

4.     Data was not shareable: Data in different computers were personalized. They were not accessible from other computers and users.

5.     Data integrity: The database integrity was not maintained.



INTRODUCTION TO DATABASE MODELS

The quest for better data management has led to several different ways of solving the file system’s critical shortcomings. The resulting theoretical database constructs are represented by various database models.

A database model is a collection of logical constructs used to represent the data structure and the data relationships found within the database.

Database models can be grouped into two categories:

1.     Conceptual Model

2.     Implementation Model

Conceptual Model

The conceptual models use three types of relationships to describe associations among data:

1.     One-to-many relationship: A painter paints many different paintings, but each one of them is painted by only that painter.

2.     Many-to-many relationship: An employee might learn many job skills, and each job skill might be many employees.

3.     One-to-one relationship: A retail company’s management structure may require that each one of its stores is managed by a single employee. In turn, each store manager who is an employee only manages a single store. Therefore, the relationship is one to one.

Implementation Model

An implementation model places the emphasis on how the data are represented in the database or on how the data structures are implanted to represent what is modeled. Implementation models include:

i.)Hierarchical-Database-Model
ii.)Network-Database-Model
iii.)Relational-Database-Model-and
iv.) Entity Relationship Database Model

i.) Hierarchical Database Model

North American Rockwell was the prime contractor for the Apollo project, which culminated in a moon landing in 1969. Bringing such a complex project to a successful conclusion, this process requires the management of millions of parts. Information concerning the part was generated by a complex computer file system.

When North America Rockwell began to develop its own database system, an audit of computer tapes revealed that over 60% of the data were redundant (repeated). The problems caused by data redundancy forced North American Rockwell to develop an alternate strategy for managing such huge data quantities.

Borrowing parts of existing database concepts, they developed software known as GUAM (Generalized Update Access Method), which was based on the recognition that the many smaller parts would come together as components of still larger components and so on until all the components came together in the final unit.

In the mid-sixties, IBM joined North American Rockwell to expand the capabilities of GUAM replacing the computer tape medium with more up-to-date disk computer storage which allows the introduction of complex pointer system. The results of the joint Rockwell-IBM effort become known as the Information Management System (IMS).

Advantages:

1.     The relationship between various layers is logically simple.

2.     This system provides a tough database security.

3.     Hierarchical database system maintains data independence i.e. if a data is altered in one table, it does not affect the other location.

4.     There is always a parent-child relationship and data integrity is maintained.

5.     For a large volume of data and 1:M relationship, it is a very efficient model.

Disadvantages:

1.     The physical implementation of the database is complicated.

2.     Alternation in database structure is difficult to manage.

3.     Structural independence exists when changes in the database structure do not affect the DBMS’.

4.     Application programming use complexity which may exist in many cases.

5.     Implementation limitations due to the incapability of managing the relation such as M:N.

6.     It lacks in DDL and DML standard of commands.

ii.) Network Database Model

Network database model was created to represent complex data relationships more effectively than the hierarchical model, which could improve database performance and impose a database standard. The lack of database standards was troublesome to programmers and application designers because it made database designs and applications are less portable.

In many aspects, the network database model resembles the hierarchical database model. It also uses the same principle of 1:M relationship. However, quite unlike the hierarchical model, the network model allows a record to have more than one parent. Therefore, the commonly encountered relationships can be handled easily by the network database model.

Using network database terminology, a relationship is called a set. Each set is compared to at least two record types: an owner record that is equivalent to the hierarchical model’s parent and a member record that is equivalent to the hierarchical model’s child. A set represents a 1:M relationship between the owner and the member.

Advantages:

1.     The database is conceptually simple in structure.

2.     It can handle more relationship types.

3.     It has data access flexibility such as accessing its own record and all the member records in the set.

4.     Promotes database integrity since owner record and member records are defined precisely.

5.     Changes in the data integrity since owner record and member records are defined precisely.

6.     Changes in the data do not require a change in access methods which is the benefit of data independence.

7.     It confirms the standards such as DDL (Data Definition Language) and DML.

Disadvantages:

1.     Since, the system is complex the system navigators, database administrators, programmer and end users must be very familiar with the internal structure in order to access the database. Lack of structural independence

2.     Although, the network mode achieves data independence, it still does not produce structural independence.

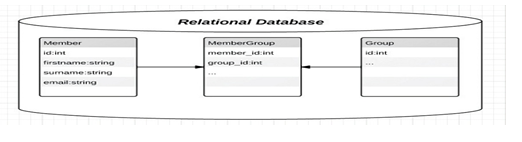

iii.) Relational Database Model

The Relational Model, first developed by E.F. Cod (of IBM) in 1970, represented a major breakthrough for both users and designers. To use an analogy, the relational model produced an “automatic transmission” database to replace the “standard transmission” database that preceded it.

Its conceptual simplicity set the stage for a genuine database revolution. Codd’s work was considered ingenious but impractical in 1970. The relational model’s conceptual simplicity was brought at the expense of computer overhead; computers lacked the power to implement the relational model.

The relational database model is implemented through a very sophisticated relational database management system (RDBMS). The RDBMS performs the same basic functions provided by the hierarchical and network DBMS system plus a host of other functions that make the relational database model easier to understand and to implement.

Advantages:

1.     Data access paths are irrelevant to relational database designers, programmers and end users. It is possible to change database structure without changing the method of accessing data.

2.     This model is simpler and possesses improved conceptual simplicity.

3.     It provides easier database design, implementation, management and use.

4.     It possesses ad-hoc query capabilities.

5.     It possesses a powerful database management system.

Disadvantages:

1.     Substantial hardware and system software overhead due to the complex structure of database hidden procedures within the system.

2.     In microcomputer based systems, it has a poor design and implementation is made easy.

3.     Many promote “islands of information” problems since some database are isolated from other locations or system complexity.

iv.) Entity Relationship Database Model

The relational database model’s conceptual simplicity made it possible to expand the database’s scope. Therefore, the introduction of relational database technology triggered a demand for more and increasingly complex transactions and information.

In turn, the rapidly increasing transaction and information requirement created the need for more complex database implementation structures, thus, creating the need for more effective database design tools.

Complex design activities requires conceptual simplicity to yield successful results. Although the relational database model was a vast conceptual improvement over the hierarchical and network database models, it still lacked the features that which might make it an effective database design tool because it is easier to examine structures graphically than to describe them in text form. Database designers find it desirable to use a graphical tool in which entities and their relationships can be pictured.

Advantages

1.     It yields a particularly easily viewed and understood conceptual view of a database’s main entities and their relationships.

2.     The ERM gives the designers visual representation very clearly.

3.     The ERM has become one of significant effective communication tools in RDBMS.

4.     The ERM is well integrated with the relational database model.

Disadvantages

1.     Limited constraint representation due to limited model.

2.     The relationship between attributes within entities cannot be represented. Example, there is no way of completed hours and classification of a student.

3.     It lacks in data manipulation language or commands.

4.     The models becomes crowded due to more presence of entities.



Normalization

Normalization of Data

Normalization is a process which has a setof steps that enables to identify the existence of potential problems called update anomalies (irregularities) in the design of a relation database. This process supplies the methods for correcting these anomalies. In this process, it involves converting tables into various types of normal forms. A table in particular normal form processes a certain desirable collection of properties.

The normal forms are 1NF, 2NF,3NF, which were later extended by Boyce-Codd. The normalization process allows a table or collection of tables and produces a new collection of tables that represent the same information but free of anomalies.

In the normalization process, two terms are basically used. They are functional dependence and keys.

Functional dependence:

Functional Dependence is a formal name for what is basically a simple idea. Example: A sales representative pay class determine his or her commission rate. In other words, a sales representative’s pay class functionally determines his commission rate or a sales commission rate functionally depends on his pay class.

File name: SaleRep

Sales Rep	Last Name	First Name	Price	City	Commission	Rate

[Note: Each blank row can hold data]

Filename: Customer

Customer Number	Last Name	First Name	Place	City	Balance	Credit Limit	Sales rep number

[Note: Each blank row can hold data]

A column (attribute) B is functionally dependent on another column (or possibly a collection of columns), if a value for A determines a single value for B at any one time. The functional dependence of A is written as (AàB). If B is functionally dependent on A. This can express as A functionally determines B.

Functional dependence is determined on the basis of the unique field. For example, last name, address, ID code, etc.

Keys

It is the second underlying concept of the normalization process. A primary key is very important. A column (attribute) C (or collection of columns) is the primary key for table (relation) T.

If;

1.     All column in T is functionally dependent on C.

2.     No sub-collection of the columns in C (assuming C is a collection of columns and not just a single column) also has property (a).

Example, given the name, you cannot determine the address, city etc. In this case, you will choose candidate key. The candidate key is a column or collection of columns on which all columns in the table are functionally dependent. The primary key defines the candidate key as well.

The candidate keys that are not chosen to be the primary key are often referred to as an alternate key. The primary key is frequently called simply, the key in other studies on database management and the relational model.

First Normal Form

A table (relation) is said to be the first normal form ( 1NF) if it does not contain the repeating groups. A table (relation) that contains a repeating group (or multiple entries for as single record) is called a non normalized relation. Removal of repeating groups is the starting points in the quest for tables that are free of problems as possible.

Tables without repeating groups are in the first normal form. In the given table, if a student (SIDà 100) is deleted, the information about the fee of Golf is lost. This has deletion anomaly. Similarly, if a student wants to take part in cricket, its fee is unknown. It also possesses the insertion anomaly.

Second Normal Form

Consider the third relation in the above figure. Here, we have assumed that the student is allowed to enroll for more than that one activity at a time. We observe that it has modification anomalies. If we delete the tuple for student 175 (SIDà175), we lose the fact that the monthly fee of squash is Rs. 50. Also, we cannot enter an activity until a student signs up for it. Thus, the relation suffers from both insertion and deletion anomalies.

The problem with this relation is that it has a dependency involving only part of the key. The key here is the combination (SID, Activity) but the relation contains dependency, Activity a Fee (Fee depends on the type of Activity). The determinant of this dependency (Activity) is only part of the key (SID, Activity). The modification anomalies could be eliminated if the non-key attribute (Fee) were dependent on all the key, not just a part of it.

To resolve the situation, we must separate the relation into small ones. The situation now leads to the definition of the second normal form:

A relation is in second normal form if all the non-key attributes are dependent on the entire key. Observe that this definition pertains to relations that have composite keys. If the key is a single attribute, then the relation is automatically in second normal form.

Filename: ACTIVITY (SID, Activity, Fee)

Key: (SID, Activity)

Activities can be split to form two relations in second normal form. The relations are the same as those in fig.

STU-ACT

SID	Activity
100	Skiing
150	Swimming
175	Squash
200	Swimming

ACT-COST

Activity	Fee
Skiing	200
Swimming	50
Squash	50



Third Normal Form

The relation in second normal form also has anomalies. Consider the relation HOUSING in given fig. Here, the students stay in different houses and their cost prices per quarter are different. The key here is SID and the functional dependencies are SID à Building and Building à Fee (SID à Activity and Activity à Fee, as in second normal form). The dependencies arise because a given student lives in only one building and each building has its own fixed fee structure, for e.g. everyone living in Yellow House pays Rs. 1200 per quarter.

Since, SID determines Building and since, Building determines Fee, then, transitively SID à Fee. Hence, SID depends on fee which is incorrect. Thus, SID, a single attribute, is the key and the relation must, therefore, be in second normal form. The relation, however, does still have anomalies. These anomalies can be resolved by splitting the table.

HOUSING ( SID, Building, Fee)

Functional dependencies: Building à Fee

SID à Building à Fee SID à Housing (SID,Building) BLDG-FEE (Building, Fee)

SID	Building	Fee
100	Yellow	1200
150	Blue	1100
200	Red	1200
250	White	1100
300	Green	1200
Table 1



SID	Building
100	Yellow
150	Blue
200	Red
250	White
300	Yellow
Table 2



Building	Fee
Yellow	1200
Blue	1100
White	1100
Table 3

If we delete the second row of the Housing relation (table 1), we lose not only the fact that student 150 lives in Blue house, but also that it costs Rs. 1100 to live there. This is a deletion anomaly. Further, how can one record the fact that the fee for XY House (imagine) is R.s 1500? We cannot do that until a student moves into the XY House. This is an insertion anomaly. To eliminate the anomalies from the relation in second normal, the transitive dependency must be removed. This leads is to the definition of the third normal form:

A relation is in third normal form if it is in second normal form and has no transitive dependencies.

Housing relation in above fig can be split into two relations in third normal form. The relation STU-Housing (SID, Building) and BLDG-Fee (Building, Fee) are examples.

Structured Query Language (SQL)

SQL was developed by IBM in the, 1970s as a way to get information into and out of relational database management systems. It was first standardized in 1986 ANSI. It is declarative in nature. That is its commands are accurate and declared so that they perform on particular databases. SQL commands are categorized as:

·         DDL such as create a table, alter table, drop table, etc.

·         DML such as select, insert into, update, delete from, etc.

SQL is a declarative language. It is used to find the results of the database. SQL queries are the most common in use. The SQL sublanguage DML and DDL are very common in server-based database management system. For using SQL, you need to create the table, insert data records into the table and then, you can manipulate the data records or make the queries. A typical command could be:

SELECT CarModel FROM CarSales WHERE CarSoldDate Between ‘May 1, 2005’ AND May 31, 2005’;

For creating database you would like to enter the SQL command as:

CREATE TABLE MyFirstTable

(Stud_name varchar (40), Stud_Address varchar (40), Stud_Date Of Birth Date, )

For listing all the records from the table, you would enter the command as:

Select * from My First Table

Similarly, for various activities such as deleting records, indexing records, filtering records, joining tables, etc., you have commands of SQL. These commands are beyond context at this level.



Database System Environment and Data Security

Database System Environment

The term database system refers to the components of an organization that defines and regulate the collection, storage, management and use of data within a database environment. From a general management point of view, the database system is composed of the five major parts:

1.     Hardware: The computer

2.     Software: The operating system, the utilities, the files, file management programs and application programs that generate reports from the data stored in the files

3.     People: Data processing managers, Data processing specialists, programmers and end users

4.     Procedures: The instructions and rules that govern the design and use of the software component

5.     Data: The collection of facts

Types of Database Systems

A database system gives us a way of gathering together specific pieces of relevant information. It also provides a way to store and maintain that information in a central place. A database system consists of two parts:

·         The Database Management System (DBMS) which is the program that organizes and maintains these lists of information, and

·         The Database Application, a program that lets us retrieve, view, and update the information stored by the DBMS.

The DBMS on which the database system is based, can be classified according to the number of users, the database site locations and the expected type and extent of use.

The numbers of users determine whether the DBMS is classified as a single user or multi-user. A single-user DBMS supports only one user at a time. In other words, if user A is using the database, user B and C must wait until user A has completed his/her database work. If a single user database runs on a personal computer, it is also called a desktop database.

A multiuser DBMS supports multiple users at the same time. If the multiuser database supports a relatively small number of users (less than fifty) or a specific department within an organization, it is called workgroup database. If the database is used by the entire organization and supports many users across many departments, the database is known as an enterprise database.

The database site location might also be used to classify DBMS. For example, DBMS that supports a database located at a single site is called a centralized DBMS. A DBMS that supports a database distributed across several different sites is called distributed DBMS.

The type of computer systems that database can run can be broken down into four broad categories or platforms: Centralized, PC, Client/Server and Distributed.

The different database systems are:

1.     Centralized Database Processing System

2.     Personal Computer System

3.     Client/Server Database System

4.     Distributed Processing Database System

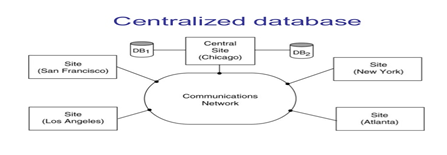

1. Centralized Database Processing System

In a centralized system, all programs run on the main host computer, including the DBMS, the application that accesses the database and the communication facilities that send and receive data from the user’s terminals. The users access the database through either locally connected or dial-up (remote) terminals. The terminals are generally dumb, having little or no processing power of their own and consists of only a screen, keyboard and hardware to communicate with the host.

2. Personal Computer Systems

When a DBMS is run on a PC, the PC acts as both the host computer and the terminal unlike the larger systems. The DBMS functions and the database application functions are combined into one application. Database applications on a PC handle the user input, screen output and access to the data on the disk. Combining these different functions into one unit gives the DBMS a great deal of power, flexibility and speed, usually at the cost of decreased data security and integrity.

However, in recent years many have been connected to a Local Area Networks (LANs). In a LAN, the data and usually, the user applications reside on the File Server, a PC running a special Network Operating System (NOS) such as Novell’s NetWare or Microsoft’s LAN Manager or Windows NT. The file server manages the LAN access to other shared resources.

3. Client/Server Database Systems

In a generalized concept, client PC is the computer from where the user requests for data and information and the server provides the requested information. The database application on the client PC referred to as the “front end system” that handles all the screen and user input/output processing.

The “back end system” on the database server handles data processing and disk access. For example, a user on the front end creates a query for data from the database server and the front-end application sends the request across the network to the server. The database server performs the actual search and sends back only the data that answers the user’s query.

4. Distributed Processing Systems

A simple form of distributed processing has existed for several years. In this limited form, data is shared among various host system via updates sent either through direct connections on the same network or through remote connections via phone or dedicated data lines.

An application which runs one or more of the hosts, extracts the portion of data that has been changed during a programmer-defined period and then transmits the data to either a centralized host or other hosts in the distributed circuit. The other databases are then updated so that all the systems are in sync with each other.

This type of distributed processing usually occurs between departmental computers or LAN's and host systems; the data goes to a large central minicomputer or mainframe host after the close of the business day. The below figure illustrates one form of distributed processing system.

Benefits of Database Management System

1.     Reduction in data redundancy: In non-database systems, each application has its own separate files. Each file can have repeated data in different ways which consume more space. The database management system removes this problem

2.     Reduction in data inconsistency: The contradictory of a presence of same data in various forms in the different database can be removed.

3.     Sharing of data is possible: Same database or table can be shared with more than one end user during data processing.

4.     Enforcement of standards: In database management systems, new standards have emerged which can be applied.

5.     Improved in data security: DBMS provides check and validation rules for the users while accessing databases. This prevents from piracy of database and data manipulation.

6.     Maintenance of Data Integrity: The data integrity refers to the accuracy of data. The database management system provides correct and relevant data records.

7.     Better interaction with end users: The screens and interfaces for the users have become more friendly in database management systems.

8.     Efficient systems: The overall efficiency of the database management system is increased tremendously due to the use of new versions of database management systems.

Data security

Data security is one of the challenging jobs of Database Administrators (DA). The secured data can be transferred from one server to another server at great distances. For the prevention of data piracy and data mining, proper securities are necessary to be implemented in the system. The two common methods of data security are using the username and password. The username authentication and password verification can allow for data access. So, data security is a preventive measures that a Database Administrator (DA) must take for the protection of data from the unauthorized access, theft, corruption, etc.
